When it comes to creating custom stereo cables for your audio gear, there are numerous benefits: cost savings, quality control, and the satisfaction of knowing your cables are built to last. With the right tools and materials, making your own cables can be a simple, cost-effective project. In this comprehensive guide, we will walk through the process of making stereo audio cables, touch on the types of cables that carry stereo signals, and explore the importance of Wire & Cable Machinery in cable manufacturing. Additionally, we will discuss various wire and plastic machinery and relevant terms in the industry. Let’s dive into this DIY journey!
Creating a stereo cable may sound complicated at first, but it’s a relatively straightforward process once you get the hang of it. Whether you're making a 3.5mm stereo jack cable or an XLR cable, the basics remain the same. Follow these steps to craft your custom stereo cable.
Before you begin, gather the following materials and tools:
Audio Cable (Canare, Mogami, Belden)
Connectors (Neutrik or Switchcraft preferred)
Soldering Materials (60/40 Rosin-core solder, flux)
Heatshrink Tubing (For strain relief and insulation)
Cable Labels (For identification)
Protective Covers (For the cable ends)
Soldering Iron (Preferably a Weller 25w or 35w)
Wire Strippers (Automatic or manual)
Wire Cutters (Flush-cutters for smaller wires)
Tweezers (For precise work)
Heat Gun (For heatshrink tubing)
Digital Multimeter (DVM) (For testing continuity and proper connections)
With all the tools and materials ready, let's proceed with the actual construction process.
Start by determining the length of your cable. It’s a good practice to add a bit of extra length to your cable for flexibility. Cut the audio cable to your desired length using wire cutters.
One crucial mistake that many beginners make is forgetting to add the connector shells before starting the soldering process. Attach both connector shells to each end of the cable (facing back-to-back). This ensures you won't forget them during the final assembly.
Next, strip off the outer insulation of the cable. Be careful not to damage the internal wires. You will find three conductors inside: the shield (ground) wire and two signal wires (positive and negative). For standard stereo cables, the shield is connected to the ground, while the signal wires carry the positive and negative signals.
Strip about half an inch of insulation from the inner wires using your wire strippers. For a clean connection, twist the exposed wire strands into neat, compact groups.
Pin 1 is always connected to the shield, which is the ground. Pins 2 and 3 are for the positive and negative signals. Ensure that the same wire (positive, negative, or ground) goes to the same pin on each end to avoid phase issues, such as sound distortion.
Before you solder, it's a good idea to tin the wire ends with a small amount of solder. This will prevent the wire strands from flying around during the soldering process.
Carefully solder the wires to the connector pins using your soldering iron. Ensure there are no cold solder joints or accidental shorts. Once you’re done, check the integrity of the solder joints to ensure a secure connection.
To protect the solder joints and prevent mechanical stress, apply a length of heatshrink tubing over the connector area. This adds durability to your cable and ensures the cable doesn't easily break due to bending. Once in place, use a heat gun to shrink the tubing.
You can also add a small label inside the clear heatshrink to identify your cables for easy tracking.
Finally, use a digital multimeter (DVM) to check for continuity. This will ensure there are no short circuits or open connections. Testing your cable before use is essential to avoid issues during live performances or recording sessions.
Once everything checks out, your stereo audio cable is ready for use!
The question of whether it's cheaper to make your own stereo cables compared to buying pre-made ones often arises among DIY enthusiasts. The answer largely depends on the scale and quality of cables you require.
| Item | Pre-made Cable Price | DIY Cable Price |
|---|---|---|
| High-quality stereo cable (e.g., Neutrik, Mogami) | $25 - $50 per 3ft | $15 - $30 per 3ft |
| Soldering Iron | N/A | $20 - $50 |
| Wire Strippers | N/A | $15 - $50 |
| Heat Gun | N/A | $20 - $50 |
While the initial cost of tools might seem high, building your own cables becomes much more affordable over time, especially if you require multiple cables. The key advantage lies in the quality of materials used and the satisfaction of creating a high-quality product tailored to your specific needs.
The process of manufacturing cables—whether stereo, coaxial, or other specialized cables—relies heavily on Wire & Cable Machinery. These machines handle everything from the drawing of copper and aluminum wires to the coating and insulation of the final product. Below are some of the most essential machines used in cable manufacturing:

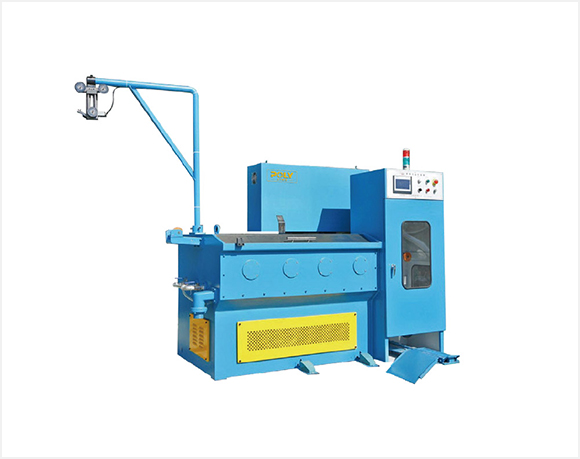

Wire drawing machines are used to reduce the diameter of copper or aluminum wires, making them suitable for cable manufacturing. Copper & Aluminum Wire Drawing machines ensure that the wires maintain the right thickness, flexibility, and strength.
A Continuous Inline Annealer is used to soften the wire after it has been drawn, making it more pliable. This process helps to avoid wire breakage and ensures the finished cable is flexible and durable.
The Take-Up machine is responsible for coiling the wire into neatly wound spools. It ensures that the wire does not become tangled or damaged during the production process.
In some cases, manufacturers use alloys like Alloy Wire Drawing for cables that require specific properties, such as higher resistance to corrosion or improved electrical conductivity.
An EDM Brass Wire Drawing Machine is used in more specialized applications like electrical discharge machining (EDM). Brass wire has unique characteristics that make it suitable for precision cutting and other applications.
Steel Wire Drawing is used for creating high-strength cables, which are crucial in industries requiring heavy-duty cables like construction or automotive sectors.
The insulation around cables is made using wire and plastic machinery that applies a plastic cover to the cable. This helps in protecting the inner conductors from physical damage, moisture, and electrical interference. Some machines used in this process include:
Extruders: These machines apply the plastic cover to the wire, ensuring a consistent layer of insulation.
Coating Machines: Coating machinery is used to apply various layers of materials to the wire, providing protection against external factors such as moisture or electromagnetic interference (EMI).
If you’re in the business of making cables or collecting used wire, you might wonder, "Where to sell cable wire?" The demand for copper, aluminum, and other metal wires is high, as these materials are valuable for recycling. You can sell your wire scrap to local scrap yards, or you can reach out to wire and plastic machinery manufacturers who need raw materials for their production processes.
If you're looking to expand your cable-making operation or need specific machinery, you might be interested in purchasing used wire processing equipment. This includes everything from used wire drawing equipment to machines for coating and finishing cables. Buying used equipment can be a cost-effective solution for businesses, especially if you’re just starting out.
The price of cable making machines varies significantly depending on their capabilities and complexity. A basic cable making machine might cost around $10,000, while more specialized machines, such as Wemco wire machines or Tube Type Annealing-tinning machines, can cost upwards of $50,000. Cable making machine prices are influenced by factors like production speed, material compatibility, and automation.
In addition to stereo cables, electrical wiring is an essential part of many industries, from residential construction to industrial settings. Understanding the different electrical wire types and their uses is crucial.
| Wire Type | Use |
|---|---|
| Copper Wire | Used in most residential and commercial wiring applications. |
| Aluminum Wire | Often used for higher-capacity wiring, especially in long-distance power lines. |
| Coaxial Cable | Used for transmitting audio and video signals, including stereo and television signals. |
| Electrical Wire for House | For wiring within homes and buildings. |
| TE Wire Cable | Heavy-duty wire used for industrial equipment. |
Making your own stereo cables is not only a rewarding DIY project but also a cost-effective and quality-focused way to build custom cables for your audio equipment. By using Wire & Cable Machinery in the cable-making process, manufacturers can ensure that the final product meets high standards of performance and durability. Whether you’re looking to create a simple 3.5mm stereo cable or a complex, multi-conductor audio system, understanding the tools, materials, and equipment involved will help you make informed decisions.
With the right components, tools, and a little patience, you can create your own stereo cables that outperform commercially available ones—at a fraction of the cost. So, roll up your sleeves, gather your materials, and start making your own stereo cables today!
