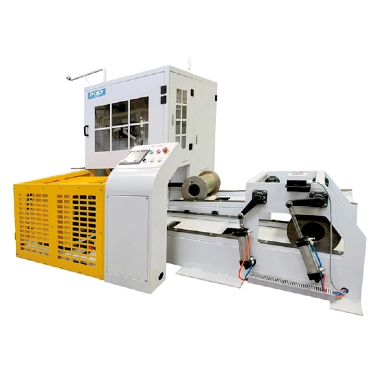

User-friendly Automatic Spooler for Steel Cord Wire integrates a wire winding system, automatic traversing compensation device, spool handling system, and optional online measurement equipment to provide efficient wire take-up performance.During operation, the drawn steel wire enters the spooler and is arranged evenly on the bobbin through the automatic traversing compensation system. The wire-tail knotting device helps prevent wire loosening during transportation, ensuring secure wire fixing after winding. The optional 90-degree bobbin rotation device improves convenience during material handling, while the online laser caliper provides accurate wire diameter measurement for production monitoring.
Designed for steel wire and steel cord wire production lines, the machine supports different finished wire diameters, bobbin sizes, and production speed requirements, providing a reliable solution for automatic wire winding applications.
The automatic spooler is equipped with a patented wire-tail knotting device to prevent wire loosening during transportation, ensuring secure wire placement after winding.
The independently developed automatic traversing compensation system automatically adjusts wire arrangement during winding, reducing manual adjustment requirements and improving winding consistency.
The system can be equipped with a 90-degree bobbin rotation device, making bobbin grabbing and handling more convenient.
The optional online laser caliper provides precise wire diameter measurement, supporting quality monitoring during production.
Type | WSGA300 | WSGA150 | WSGA200 |
Material | Steel wire、steel cord wire | ||
Fnished dia. | Ф0.3-Ф0.6 | Ф0.1-Ф0.3 | Ф0.1-Ф0.3 |
Max. production speed | 600m/min | 1000m/min | 1200m/min |
Bobbin size | Ф300 | Ф150-Ф200 | Ф200-Ф250 |
Max. capacity of spool | 50kg | 20kg | 30kg |
User-friendly Automatic Spooler for Steel Cord Wire is mainly applied in steel cord wire production lines for automatic winding and collection after drawing processes. It is suitable for applications requiring stable wire arrangement, secure spool handling, and efficient wire take-up, especially in tire reinforcement steel cord manufacturing and precision metal wire production.
This machine is mainly designed for steel cord wire winding applications after drawing processes.It is suitable for steel wire and steel cord wire production applications.
Yes. The machine is equipped with an automatic traversing compensation system, which helps maintain stable wire arrangement during winding and reduces manual adjustment requirements.
The patented wire-tail knotting device helps prevent wire loosening during transportation and ensures secure wire placement after winding.
