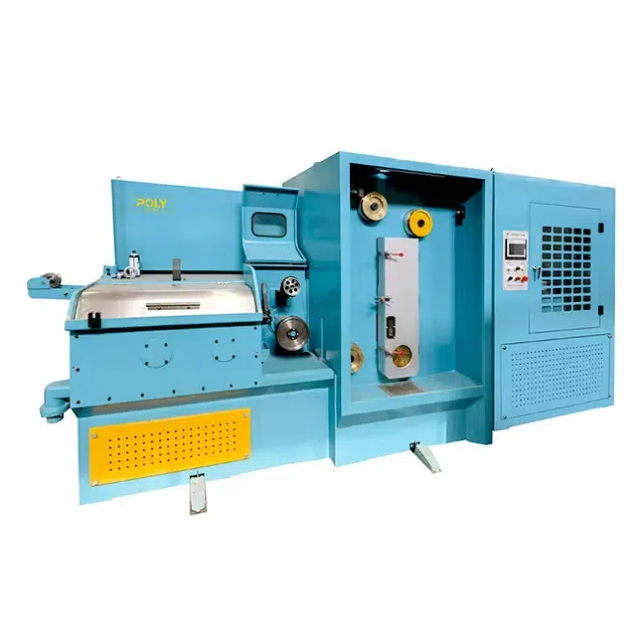

Tubular annealing machines play a critical role in determining the quality and mechanical properties of copper conductors. For manufacturers and operators in the wire and cable industry, understanding potential faults and knowing how to troubleshoot them effectively is essential to maintain productivity, reduce scrap, and ensure product consistency. At Zhangjiagang Poly Machinery and Electric Manufacturing Co., Ltd., we have over twenty years of experience in designing and producing advanced wire drawing machines and annealing systems that meet high surface quality and straightness requirements. In this article, we will provide a comprehensive guide on the most common faults of copper wire tubular annealing machines and practical solutions for maintaining optimal performance, helping operators maximize uptime and efficiency.
Uneven or insufficient heating is one of the most frequent problems in tubular annealing. Copper wire that is not heated uniformly may exhibit inconsistent ductility, tensile strength, or surface hardness, which can compromise downstream operations such as stranding and insulation.
Burner and Gas Flow Issues: Improper gas flow or partial clogging of burners prevents consistent heat delivery. Uneven flame distribution leads to zones of underheating or overheating.
Thermocouple Drift: Temperature sensors may drift over time due to wear, contamination, or exposure to extreme heat. This can cause the control system to incorrectly adjust the furnace temperature.
Obstructed Burners or Nozzles: Deposits of carbon or other residues can block gas flow, reducing efficiency and creating hotspots or cold spots along the wire path.
Operators should calibrate thermocouples at regular intervals to ensure accurate readings. Gas pressure should be monitored constantly and maintained within manufacturer-specified ranges. Cleaning burners according to established procedures removes blockages and restores proper flame distribution. Additionally, installing redundant sensors can provide a safety net, alerting operators to discrepancies before they affect product quality. Implementing automated monitoring systems allows for continuous oversight and early detection of temperature deviations, which is particularly valuable in high-volume production environments.
Conduct pre-start inspections for gas leaks and flame alignment.
Verify thermocouple accuracy against reference instruments.
Maintain a log of burner maintenance and replacements to track performance over time.
Surface discoloration, oxidation, or sparking issues during annealing indicate an imbalance in the annealing environment. Over-oxidation can lead to poor electrical conductivity and compromised surface quality, which is particularly critical for high-end wire applications.
Incorrect Furnace Atmosphere: Insufficient protective gas or incorrect gas ratios allow oxygen to react with the copper surface.
Excessive Current or Localized Heating: Uneven electrical input or hotspots in the furnace can accelerate oxidation in specific wire segments.
Adjusting the gas mixture to ensure proper reducing conditions helps maintain a clean copper surface. Inspecting the furnace interior for hotspots and redistributing heat zones can prevent localized over-oxidation. Installing visual monitoring systems or infrared cameras can assist operators in identifying areas prone to discoloration before they affect the final product. Regularly replacing furnace lining or insulating elements reduces the risk of temperature fluctuations and maintains consistent surface quality.
Maintain a strict schedule for gas cylinder checks and regulator calibration.
Use shielding and protective atmospheres tailored to specific copper alloys.
Document oxidation occurrences to identify patterns and prevent recurrence.
Mechanical faults in rollers, shafts, or take-up systems can significantly impact wire straightness, coil uniformity, and process efficiency. Mechanical issues often manifest as wire vibration, uneven winding, or slipping, which increase the likelihood of product defects or machine damage.
Wire Vibration: Indicates misaligned rollers or worn bearings.
Uneven Coil Winding: May result from inconsistent tension or irregular roller operation.
Slipping: Often due to improper tension calibration or worn drive components.
Regular inspection of roller alignment, bearing lubrication, and tension calibration can prevent most mechanical issues. Replacing worn or damaged components promptly avoids extended downtime. For larger production lines, implementing vibration monitoring systems on shafts and rollers can detect misalignment or imbalance before it causes product defects.
Conduct pre-shift mechanical checks on all moving parts.
Maintain spare sets of critical rollers and bearings for rapid replacement.
Use alignment tools and laser guides for precise adjustment of shafts and rollers.
Electrical and control systems govern furnace operation and overall machine safety. Faults in these systems can result in unexpected shutdowns, inconsistent heating, or damage to the wire and equipment.
Error Log Review: Start by analyzing the PLC logs to pinpoint abnormal operations or repeated errors.
Sensor Isolation Tests: Disconnect and test sensors individually to confirm functionality.
Motor Drive Checks: Inspect motors for unusual vibration, overheating, or inconsistent operation.
Incorporating diagnostic tools such as thermal imaging for motors or oscilloscopes for PLC signals can enhance troubleshooting accuracy. Operators should establish a standard protocol for responding to electrical faults, from initial detection to repair or replacement. Regular software updates and calibration checks for PLCs help prevent logic errors or control failures that could disrupt production.
Preventive maintenance ensures long-term reliability and minimizes unexpected downtime. By proactively addressing issues before they escalate, operators can maintain consistent copper wire quality and maximize production efficiency.
Thermocouple Replacement: Replace sensors periodically to maintain accurate temperature monitoring.
Burner Servicing: Clean and inspect burners, nozzles, and gas lines regularly.
Filter and Gas Valve Checks: Ensure unobstructed gas flow and proper pressure settings.
Mechanical Inspections: Check rollers, shafts, and bearings for wear or misalignment.
Electrical System Checks: Test motors, PLCs, and sensors to confirm reliable operation.
Maintaining an organized inventory of spare parts—such as burners, thermocouples, bearings, and drive components—allows for rapid replacement and minimizes production interruptions. Combining a preventive maintenance schedule with operator training creates a culture of reliability and attention to detail, which directly improves wire quality and reduces scrap.
Schedule monthly full-system inspections and quarterly major maintenance.
Maintain a record of all maintenance actions to identify recurring issues.
Train operators to recognize early warning signs, such as abnormal sounds, temperature spikes, or surface discoloration.
Maintaining a copper wire tubular annealing machine in top condition requires a combination of proactive maintenance, accurate troubleshooting, and operator awareness. At Zhangjiagang Poly Machinery and Electric Manufacturing Co., Ltd., our wire drawing machines and annealing solutions are designed for durability, precision, and ease of maintenance. By understanding common faults, implementing systematic preventive measures, and keeping a well-stocked inventory of spare parts, manufacturers can ensure uninterrupted production and high-quality wire output. For detailed guidance, technical support, or inquiries about our advanced wire drawing machine and annealing solutions, contact us today to enhance your production efficiency and product consistency.
