In the wire manufacturing industry, each production phase—from drawing to annealing, coating, and final packaging—requires precise coordination. Among these steps, the take-up or coiling process at the end of the production line plays a vital role. This is where the continuous wire is collected in a safe, consistent, and tension-controlled manner for subsequent use or delivery.
The equipment responsible for this crucial task is known as the Drop Coiler. When paired with advanced take up wire to coiler systems, it ensures seamless, efficient, and high-speed coiling, significantly enhancing productivity and product quality. As industrial demands evolve towards automation, intelligence, and flexibility, Drop Coilers have become increasingly sophisticated. This article provides a detailed technical analysis of Drop Coilers, their structure, working principles, and integration into modern wire processing lines.

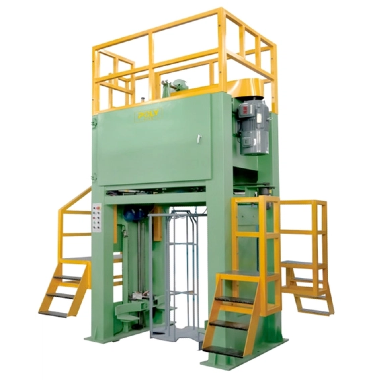

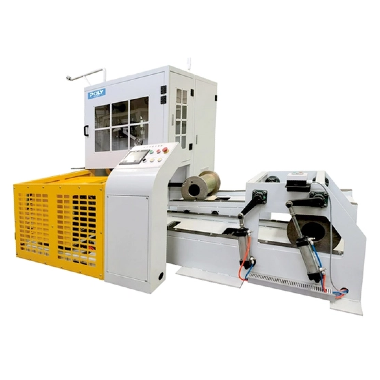

A Drop Coiler is a specialized machine used to coil wire onto a rotating platform or directly into a container. Unlike traditional spooling methods, Drop Coilers are designed to handle high-speed operations while maintaining the integrity of the wire form. They are especially critical in applications where precise coil formation, minimized tangling, and optimal layering are required.
Understanding the anatomy of a Drop Coiler is key to appreciating how effectively it supports wire production lines. The main components include:
The coiling unit is the heart of the Drop Coiler. It consists of a rotating platform or a vertical coiling shaft onto which the wire is collected. This section may include a fixed or oscillating tray that facilitates uniform drop-laying of the wire in concentric layers. Advanced models come with programmable coil diameter and pitch control to match different wire specifications.
The guiding system ensures that the wire is fed into the coiler in a controlled and precise manner. Typically, this includes tension rollers, directional arms, and sometimes servo-driven guide pulleys. These components prevent wire overlap, minimize friction, and direct the wire path accurately during the high-speed drop process.
The drive system includes electric motors, frequency inverters, and motion controllers. These components synchronize the speed of the Drop Coiler with upstream machines such as wire drawing machines. The control unit, usually a PLC or CNC-based system, allows real-time parameter adjustments and automated error detection, ensuring stable performance throughout the coiling process.
The drop mechanism is specially engineered to allow the wire to naturally fall and form coils without causing entanglement or deformation. This may include specially angled chutes or dynamic trays that tilt or rotate based on the wire’s movement. Innovative designs from leading manufacturers like Zhangjiagang Poly Intelligent Equipment Co., Ltd. have integrated real-time sensors to adjust the drop mechanism based on coil formation patterns.
The seamless transfer of wire from the production line to the coiler involves a sophisticated interplay of tension regulation, speed control, and mechanical coordination. Here's how this process is realized:
Maintaining constant tension is critical to avoid wire deformation or inconsistent coiling. Take-up systems typically use dancer arms or feedback-controlled tension rollers to keep the wire taut but not overstressed. Once the wire reaches the Drop Coiler, its speed and position are precisely aligned to ensure neat coil formation.
Advanced systems measure incoming wire speed and adjust the Drop Coiler’s rotation accordingly. This coordination is essential for preventing slack, which can lead to overlapping, or excessive tension, which can cause wire breakage.
Modern Drop Coilers operate at speeds that can reach several hundred meters even more than one thousand per minute. At these speeds, even minor synchronization issues can lead to production halts or quality defects. Therefore, high-end Drop Coilers are equipped with intelligent drive systems that synchronize with the entire line, dynamically adjusting in real-time to speed changes upstream.
Another advantage of Drop Coilers lies in their adaptability. Different wire types—steel wires, copper wires, aluminum wires—each require unique handling approaches. Wire diameter, tensile strength, coating type, and flexibility all affect how the wire should be coiled.
A well-designed Drop Coiler is capable of adjusting parameters such as coil inner diameter, outer diameter, coil height, and wire feeding speed. Manufacturers like Zhangjiagang Poly Intelligent Equipment Co., Ltd. offer models with modular designs that accommodate a wide range of wire sizes and formats, making them ideal for flexible manufacturing environments.
As the wire industry embraces Industry 4.0, Drop Coilers are becoming smarter. Key advancements include:
PLC and HMI Integration: Operators can monitor, control, and optimize coiling processes through intuitive touchscreens.
Remote Monitoring: Ethernet-connected systems enable real-time diagnostics and performance tracking, even from off-site locations.
Recipe Storage: Pre-set parameters for different wire types allow quick transitions between production batches.
Predictive Maintenance: Sensors monitor component wear and alert operators before a fault occurs, reducing downtime.
These features not only improve productivity but also align with green manufacturing standards by reducing material waste and energy consumption..
Given the high rotational speeds and mechanical complexity of Drop Coilers, safety is a major concern. Leading manufacturers incorporate several features to protect both the machine and operators:
Enclosed Coiling Zones: Transparent safety guards prevent accidental contact with moving parts while allowing visual monitoring.
Emergency Stop Systems: Strategically placed buttons or foot switches ensure immediate shutdown in case of malfunction.
Automatic Fault Detection: Real-time monitoring systems can detect misalignment, over-tension, or motor faults and trigger alarms or halt operations automatically.
Maintenance routines are streamlined with easily accessible service points, modular replacement components, and clear diagnostic messages displayed on the control interface. With proper maintenance, Drop Coilers can deliver consistent performance over years of continuous operation.
The Drop Coiler is far more than a passive collection unit—it is a crucial element in achieving a streamlined, efficient, and quality-driven wire production line. From its intricate mechanical design to its integration with take up wire to coiler systems, the Drop Coiler ensures that wire products reach the final coiling stage without damage, deformation, or production delays.
As manufacturers seek to enhance throughput and embrace smart manufacturing principles, the need for robust, adaptable, and intelligent Drop Coilers has never been greater. Companies that invest in high-quality Drop Coilers can expect reduced downtime, better product consistency, and greater operational flexibility.
If you're looking to upgrade your wire processing line with state-of-the-art Drop Coiler technology, we strongly recommend Zhangjiagang Poly Intelligent Equipment Co., Ltd.. With a solid reputation for innovation, engineering excellence, and customer support, they provide customized solutions tailored to your production needs. Whether you're handling steel rods, copper cables, or other specialized wires, their Drop Coilers offer unmatched precision and reliability.
Contact Zhangjiagang Poly Intelligent Equipment Co., Ltd. today to explore how their intelligent equipment can elevate your wire production efficiency and output quality.
